Product Details Exide Energystore Gel 7ESPV700

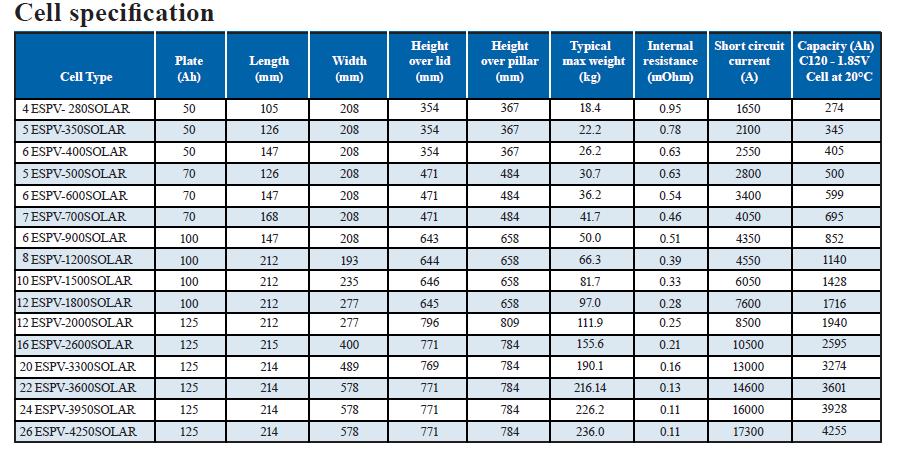

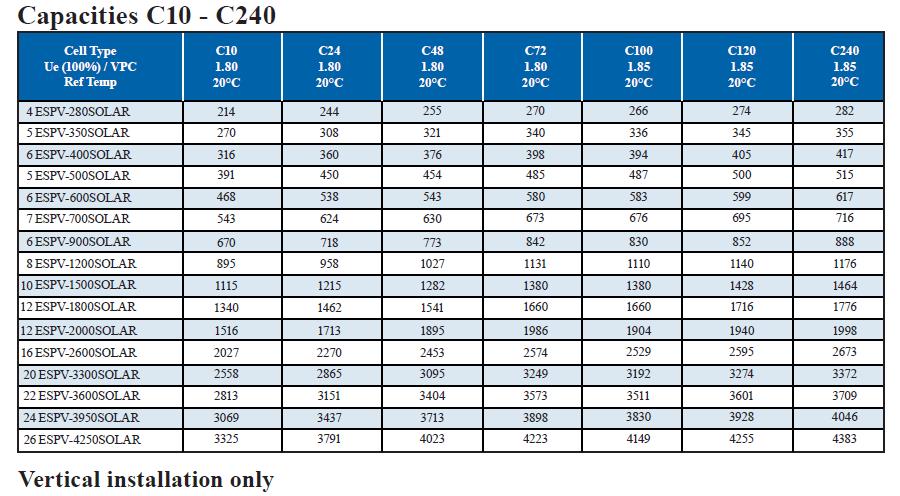

Valve regulated tubular gel cell battery with 676Ah storage capacity @ C100 (543Ah @ C10).

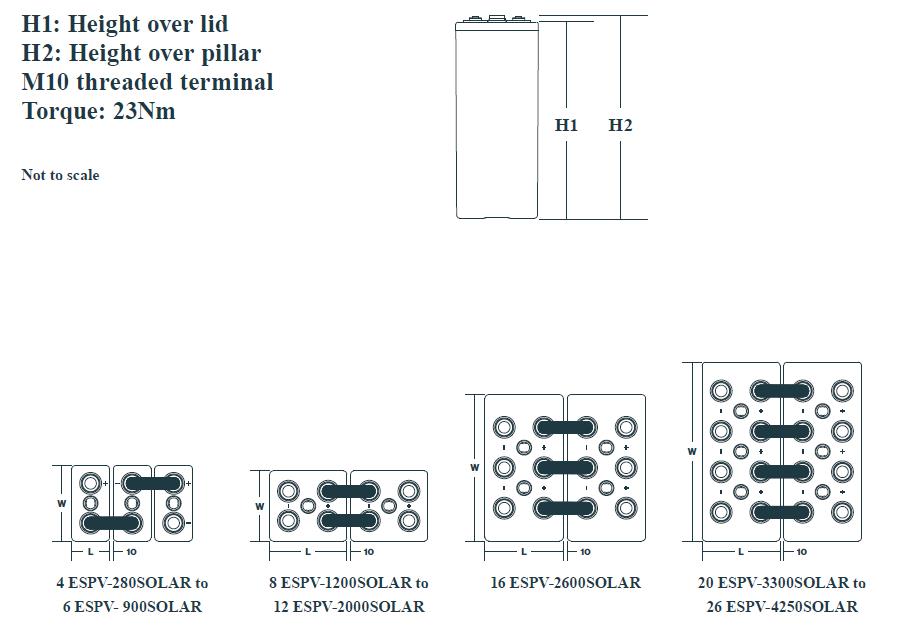

These are for upright vertical installation only.  If you need horizontal installation, please refer our range of Sonnenschein Gel batteries.

Price Includes free interconnects for orders of 2 or more.

Energystore valve regulated lead-acid batteries for the solar power and renewable energy market.  With an innovative Gel-Technology design Energystore ESPV batteries have a reliable maintenance-free and leakage-free construction.

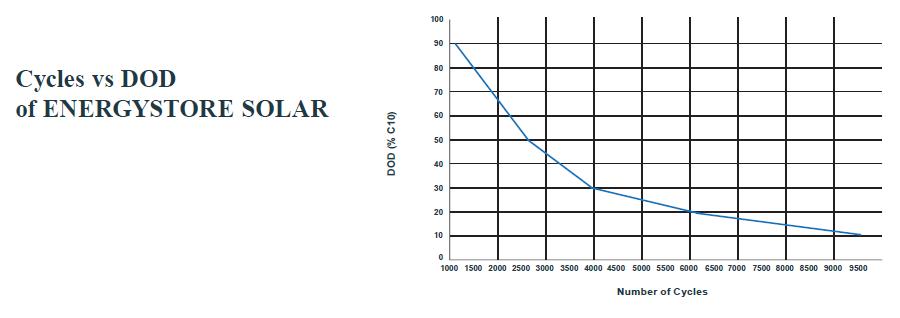

Energystore solar batteries are rated at 4000 cycles @ 30% Depth of Discharge (meaning your battery remains 70% full).

Features:

  • Positive Plate:  High energy density tubular design with lead calcium alloy ensures low self-discharge rates and low float currents
  • Terminal:  Maintains an airtight seal even when the plates expand and grow throughout the lifetime of the cell
  • Negative Plate:  Industry leading negative plate design
  • Electrolyte:  Silica-based gel electrolyte that is maintenance free
  • Separator:  High-porosity and corrosion-resistant ensures maximum capacity for the lifetime of the cell
  • Pressure Relief Valve:  Opens at high pressure to release hydrogen gas created during operation
  • Gauntlet:  Non-woven, high-capacity polyester gauntlet
  • Container & Lid:  Manufactured from Acrylonitrile-Butadiene-Styrene (ABS) which is durable and heat resistant
  • High energy density and cyclic performance
  • Robust tubular positive electrode design, compliant with DIN 40742
  • 1500 cycles at 80% D.O.D at 20°C
  • Low self discharge rate allows for up to 2 years shelf life
  • Operating temperature -20°C to +45°C
  • EUROBAT design life: Long life > 10 years
  • Fully recyclable with low CO2 footprint
  • Compliant with IEC 60896 - 21 / 22 / IEC 69427
  • Maintenance-free (no topping up) during entire service life
  • No contamination or corrosion due to leaking electrolyte
  • Very low self-discharge
  • Extremely low gassing during operation

These come as 2V cells, so you should order:

  • 12V system - 6 cells
  • 24V system - 12 cells
  • 48V system - 24 cells
  • 120V system - 60 cell

​

(7ESPV700)

Product Enquiry Form Complete this form to email us your enquiry.



SKU 7ESPV700
Brand Energystore Gel
Shipping Weight 41.7000kg
Shipping Width 0.208m
Shipping Height 0.484m
Shipping Length 0.168m
Shipping Cubic 0.016913000m3
Unit Of Measure ea
